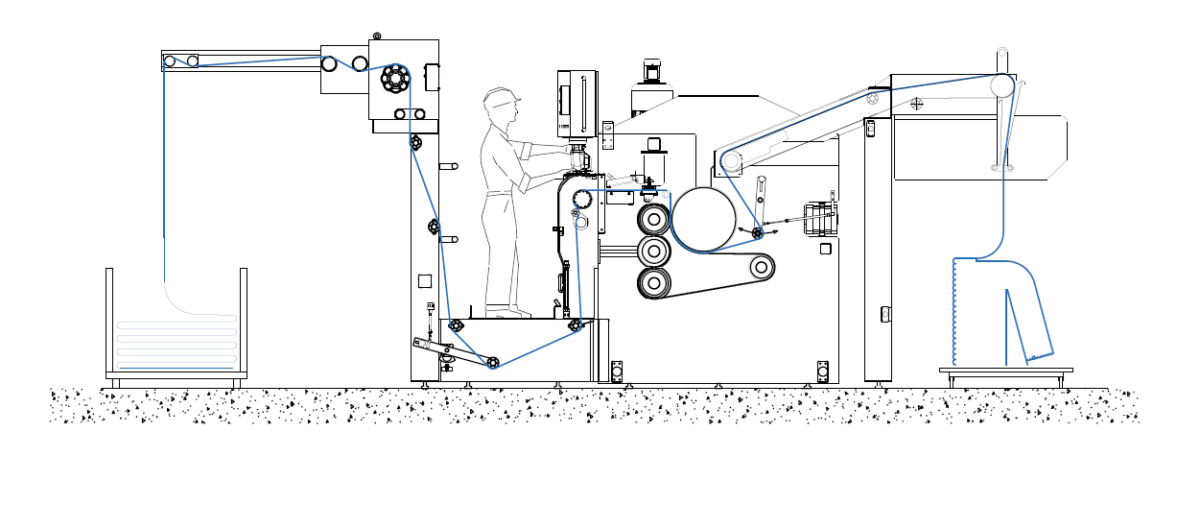

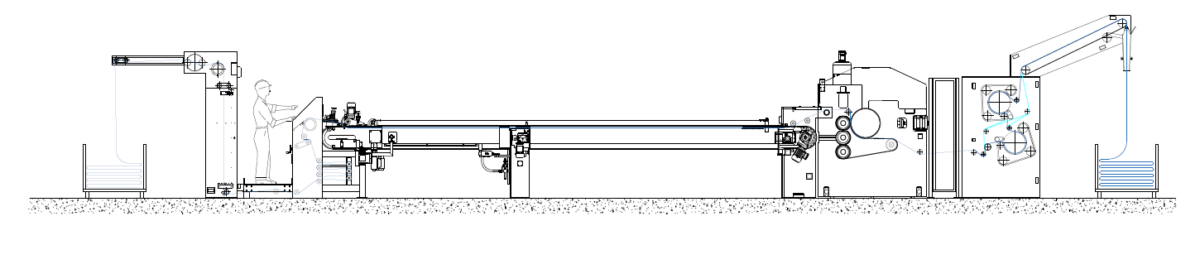

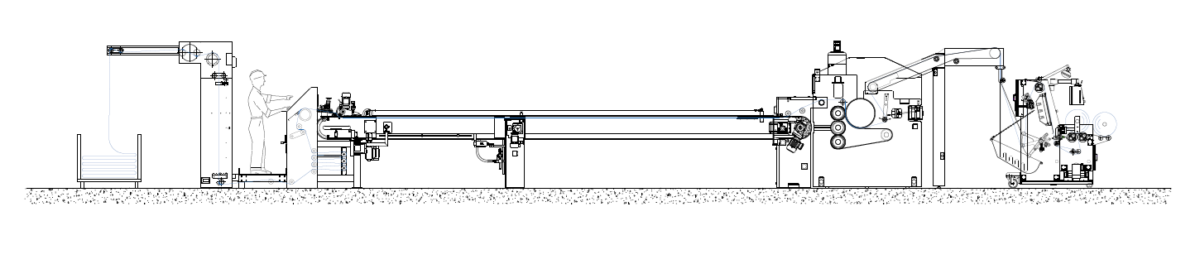

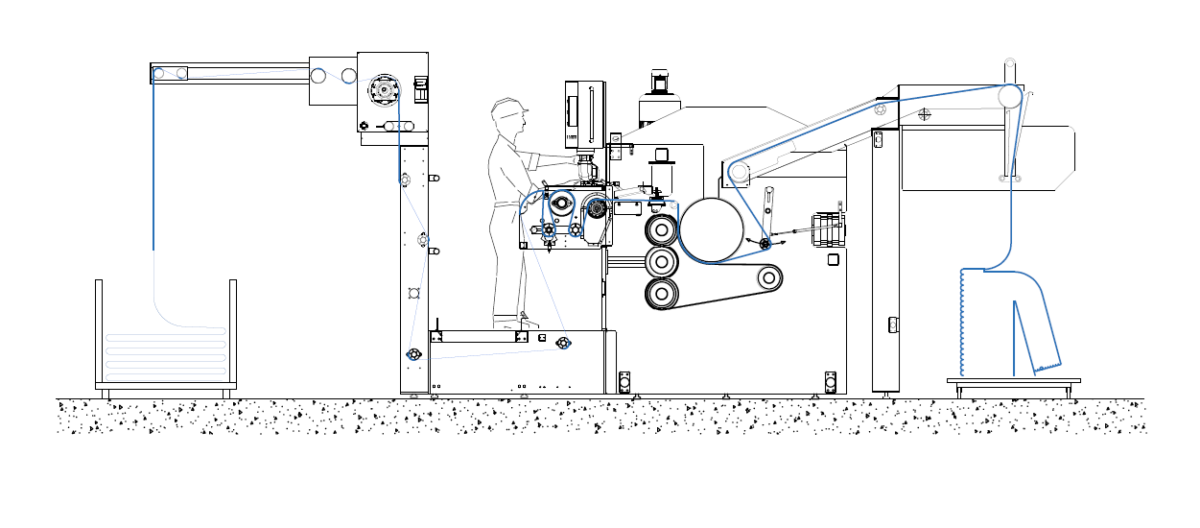

COMPAS

The new open width compacting and finishing machine for both knitted and woven fabrics.

The Compacting Revolution

The compacting concept is based on a revolutionary idea/system which exploits the use of a special belt with specific elasticity values.

Such elasticity is exploited in order to enhance the fabrics compacting.

The belt is in fact pre-tensioned at a controlled and settable value. The fabric comes in contact with the belt at the point when it is at its maximum tension. When such tension is released and the belt comes back to its original position, the fabric follows its movement being compacted lengthwise.

Description

Objectives:

  • Optimum compacting capability with both knitted and woven fabrics
  • Outstanding residual shrinkage values with all fabrics type including extremely difficult ones such as 100% viscose knitted and woven articles
  • Natural stretch effect on the fabric weft
  • Silky and smooth touch
  • Dull or shiny appearance according to the final desired effect

Technical data

compas
  • Rollers width                     2600mm
  • Working width                   2400mm
  • Mechanical speed             4/40m/min
  • Installed power                 68 kW
  • Absorbed power               49 kW
  • Noise level                        <85 db
  • Steam consumption          350 kg/h
